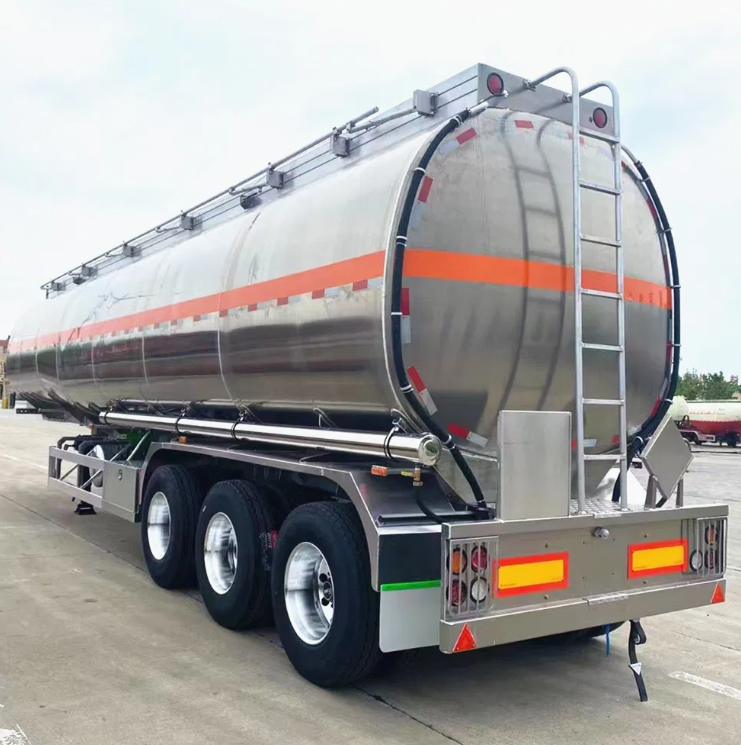

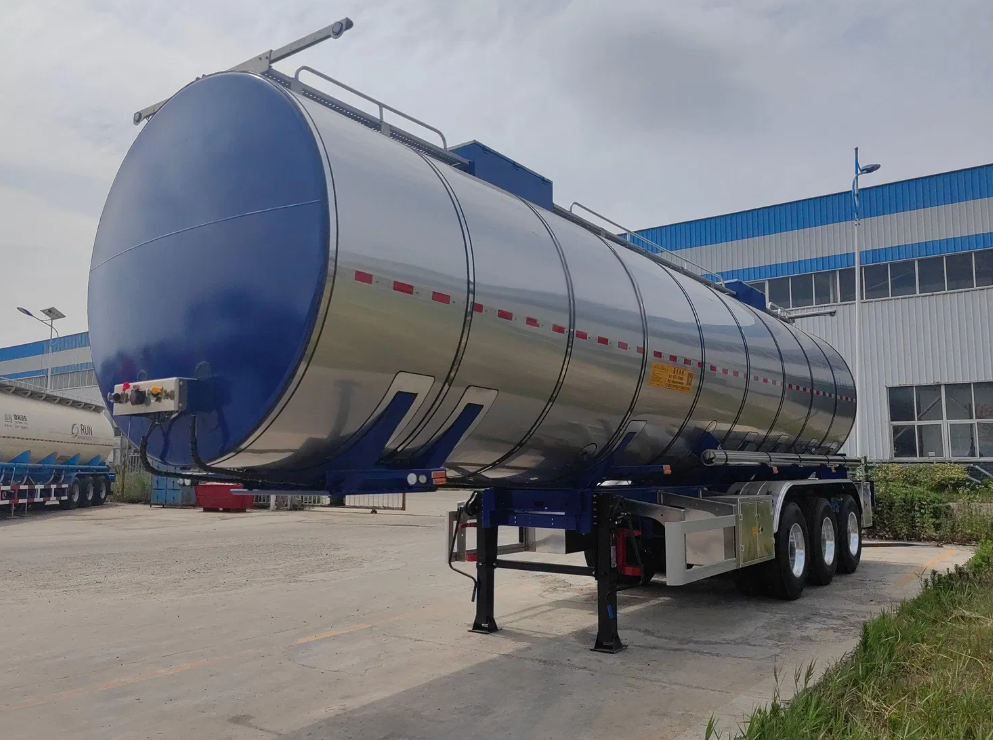

3 Axles 30000L-50000L Carbon Steel/Stainless Steel/Aluminum Alloy Tank/Tanker Truck Semi Trailer for Oil/Fuel/Diesel/Gasoline/Crude

Introduction

PRODUCT DESCRIPTION

Basic Info.

Name: 3 Axles 30000L-50000L Carbon Steel/Stainless Steel/Aluminum Alloy Tank/Tanker Truck Semi Trailer for Oil/Fuel/Diesel/Gasoline/Crude
SKU: 0

Model NO.

oil tanker-001

Type

Semi-Trailer

Load Capacity

50T

Certification

ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949, as Required

Wheel Base

as Required

Tread

1840

Grade

Heavy Duty

Types of Suspension Systems

Leaf Spring Suspension

Shape

Tanker Trailer

Axle Number

Tire Number

Self-dumping

Not Self-dumping

ABS Anti-lock Braking System

Material

Steel

Condition

New

Name

3 Axle Oil Tnaker Semi Trailer

Axle

3 Axle/Fuwa Brand/13t

Tire

12r22.5

Rim

9.0-22.5

Landing Gear

Two-Speed, Manual Operating, Heavy Duty Landing Ge

ABS

Optional

Tank Body

5mm

End Plate

6mm

Light

LED 8 Side Lights and 2 Rear Lights 2 Width Lamp

Painting

Complete Chassis Sand Blasting to Clean Rust, 1COA

Function

Oil Transporting

Main Hole Cover

Standard

Color

Optional

Logo

Optional

Package

Nude and Wax Spray

Transport Package

Wax Spray

Specification

10000mm*2500mm*3700mm

Trademark

Tank

Origin

China

HS Code

8716391000

Production Capacity

3000sets/Year

Package Size

13.00cm * 2.50cm * 3.70cm

Package Gross Weight

11000.000kg

Product Description

40cbm oil/fuel 3 axle carbon steel tanker semi trailer

Size	10500mm2500mm3700mm
Volume	30-60m³
Tank body	Q235A/4-5mm steel sheet (Stainless steel/aluminium alloy optional)
End plate	Q235A/6mm .ball shape (Stainless steel/aluminium alloy optional)
Axle	3 axle FUWA brand 13T (Optional)
Suspension	Mechanical suspension American type (Optional)
Leaf spring	Leaf spring 10pcs9013mm (Optional)
Manhole cover	500mm manhole cover with breath valve .2 sets (Optional)
Tire	12R22.5 12pcs (Brand and specs optional)
Wheel rim	9.0-22.5 12pcs (Brand and specs optional)
Discharge valve	4"disc valve
Discharge pipe	4"seamless steel tube
Bottom valve	1 set
Kingpin	2"/3.5" bolt-in /welded king pin
Landing gear	Two-speed, manual operating ,heavy duty landing gear 28T
Compartment	Single (Optional)
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light

The tanker can divided into 2 or 3 or 4 or more compartments which can transport different kinds of fuel in one time.

Spare tire carrier and fire extinguisher on the side of the tanker trailer.The side lights also get well protection.
The main frame and tanker body produce according to three-dimensional CAD technology.

Strengthen the protection of the tank body and install a perfect oil discharge pipeline.

Various signs and warning signs are customized according to customer requirements.

Apply butter to each bolt connection to prevent rusting

The tank material can be selected from carbon steel, stainless steel, and aluminum alloy.Tank volume ranges from 20 cubic meters to 70 cubic meters.

Jiumeng (Liangshan) Import and Export Company is a professional semi trailer and trailer parts exporter.Our company have our own semi trailer and trailer parts factory.Our factory covering an area of 200000 square meters. and over 130 employees.
At present, the company mainly specializing in manufacturing special vehicles such as low bed semi trailer. flatbed semi trailer. skeleton type semi trailer.cargo transport semi trailer,oil tank semi trailer, bulk cement semi trailer.dumper semi trailer and so on.We also export used truck tractors.And our trailer parts factory mainly manufacture semi trailer axle,mechanical suspension,air suspension.bogie suspension and landing gear.
Our boasts strong technical force, advanced line production equipment of welding and excellent quality guarantee system, modern testing means and high qualified specialist technicians, making the products trusted and welcomed widely by the users from all over the world. The company wants the customer's thoughts and urgency, Solving problems for customers and meeting customer needs is our eternal pursuit!
Our company's products are sold worldwide. The company has won the unanimous recognition of consumers with satisfactory product quality and perfect after-sales service. We have a professional R & D team. We can design and produce according to the drawings provided by our customers. We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. Our company is looking forward to your visit.

We use tank body coiling and forming machine,Ensure the unity of the tank body.

Automatic girth welding machine for irregular tanks.
The tank body welded by automatic welding machine.

The tank body and the main beam will welded together.
The fuel tank semi trailer is mainly composed of tank body, anti wave plate, manhole, oil gauge, hoarding, sub-frame, etc.

Rust removal and painting after the entire vehicle is formed.
The tank surface all processed by sand blasting and derusting.

We supply free parts

Item	Name
1	Red and yellow coupling head
2	Leaf Spring U Bolt
3	Leaf Spring U Bolt Nut
4	Leaf Spring Centre Bolt
5	Leaf Spring Centre nut
6	Hanger (Equalizer)Bolt
7	Hanger (Equalizer)Nut
8	Air chamber
9	Brake pads
10	pull rod
11	Adjust the arm
12	Lights

1.	Loading in the container by removing the axle/tires/side protection and tood box if the tanker volume not too big.But this requires the customer to have a certain level of assembly capability.
2	Nude with wax spray or using tent to cover the tanker body to avoid rusting.
3	Frame container:Sometimes customers also choose to use frame container to transport semi trailers.More easy to unload.

FAQ

1.How to transport the truck trailers?
We mainly transport it by ro-ro ship, bulk ship or in containers and frame container

2.Can you supply the spare parts of this semi trailer?
Yes, We can supply the spare parts for all the semi trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.

3.How do you transport the trailers?
There are optional transportation manners including RORO ship, bulk cargo ship,40
HQ to meet your requirements.

4.Can I customize the painting and the logo?
Yes, we offer customized logo according to customer's requirments

5.Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.

6.How long do you need to finish a trailer?

We mainly transport it by ro-ro ship, bulk ship or in containers and frame container

2.Can you supply the spare parts of this semi trailer?
Yes, We can supply the spare parts for all the semi trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.

3.How do you transport the trailers?
There are optional transportation manners including RORO ship, bulk cargo ship,40
HQ to meet your requirements.

4.Can I customize the painting and the logo?
Yes, we offer customized logo according to customer's requirments

5.Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.

6.How long do you need to finish a trailer?

It usually takes about 10 days to finish the common low bed trailer, container trailer,skeleton trailers after confirming the order. Oil tanker trailer , bulk cement trailer and special trailer needs about 20 days.
